Industrial Gouging Machine

for Oboe

Industrial Gouging Machine

for Oboe

Producing time: 3-4 month
You have questions on that product or you need help to order it?
Write us a message or call +49 37342 14 09 09.

efficient and precise.

Industrial gouging machine for professional reedmakers. For the efficient and precise production of large quantities of gouged cane. Industrial standard with vacuum fixation system.It is available for Oboe / Oboe d’ amore 10mm / 10.5 m / 11mm / for Englishorn12mm / 12.5 mm or for Baroque Oboe 14mm / 15 mm. You can switch your machine to a different cane diameter. There is an exchange set available.

Automatic

If you open the cover the machine will stop.

on and off and on.

Under the right hand cover the transmission is hiding. If you open the cover the machine will stop.

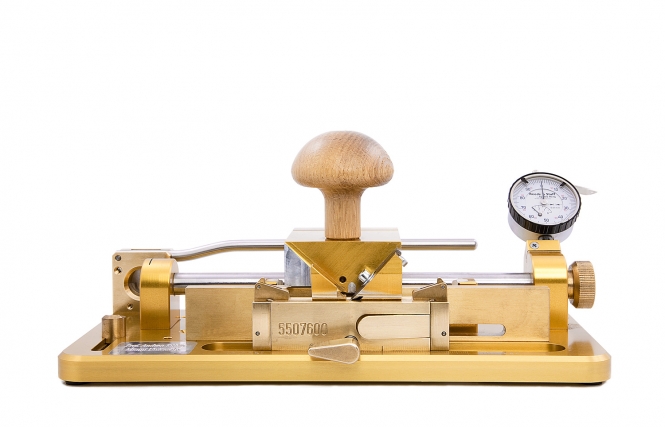

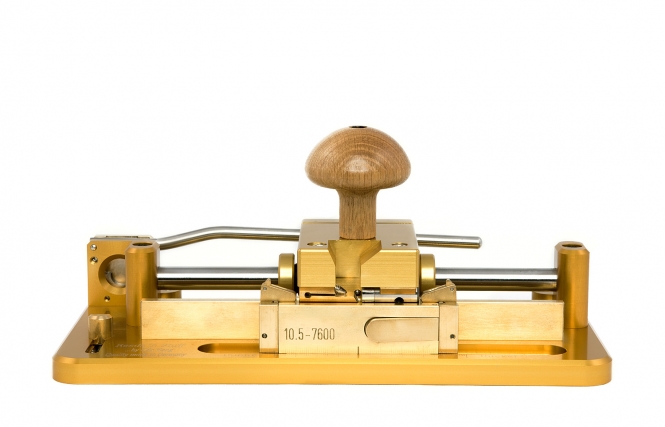

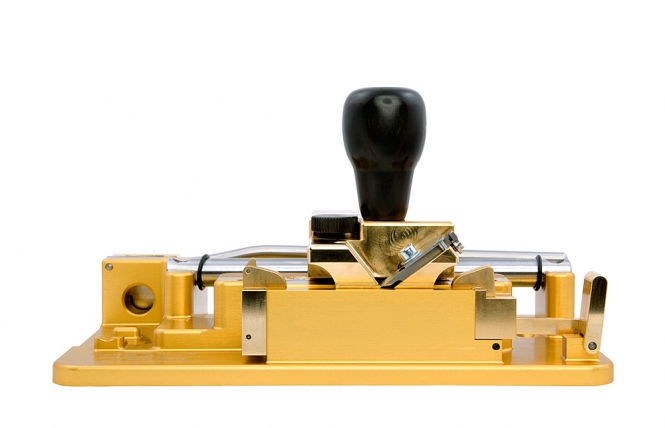

Gouging machines in comparison

Compare our Gouging machines.

Passin Reeds 'n Stuff Ridilla Industry
Passin Passin Passin Passin
Cane cutting
With cane guillotine With cane guillotine With cane guillotine
Exchange beds
No exchangeable bed
Available only in diameters 10; 10,5; 11; 12; 12,5 and 15 mm.
Exchange beds in diameters 10; 10,5; 10,7T; 11; 12; 12,5; 13; 14; 15 and 16 mm.
Other diameters on request.
No exchangeable bed
Available only in 11 mm diameter.
Exchange beds in diameters 10; 10,5; 10,7T; 11; 12; 12,5; 13; 14; 15 and 16 mm.
Other diameters on request.
Spare blades
Passin Passin Passin PassinPassin
Traditional German Gouging machine blades. Patented cylindrical blades.
3-ways usable.
An American style elliptical blade. You can choose from:
Traditional German Gouging machine blades;
Patented cylindrical blades,3-ways usable;
An American style elliptical blade.
Centering the gouge
Centered gouge Centered gouge is factory-preset.
Machine has an adjustment for W-gouge.
Centered gouge is factory-preset.
Machine has an adjustment for W-gouge.
Built-in precision system for adjusting the center of the gouge plus an attached micrometer.
Centered gouge is factory-preset.
Machine has an adjustment for W-gouge.
Cane fixation
Two clamps
Spring loaded bed end
Little teeth in bed ends to prevent cane from moving
Two clamps
Spring loaded bed end
Little teeth in bed ends to prevent cane from moving
Two clamps
Spring loaded bed end
Little teeth in bed ends to prevent cane from moving
Vacuum fixation
Little teeth in bed ends to prevent cane from moving
Dimension (WxDxH)
21 x 11 x 11 cm 26 x 11,7 x 12 cm 26,5 x 14,5 x 13,5 cm 61 x 28 x 26 cm
Weight
ca. 2,0 kg ca. 2,5kg ca. 2,6 kg ca. 35 kg
Voltage
110 or 230 V
See our Gouging machines
further information further information further information further information
Voltage
110 oder 230 V
